Home MANUAL TOGGLE CLAMPS Push-Pull type toggle clamps M60D Push-pull type toggle clamp with vertical base
Push-pull type toggle clamp with vertical base
For push- and pull-clamping (Equal operation of rod and lever).
Galvanized and zinc-plated quality steel
Rivets of stainless steel and hardened bushings.
Bearings and bushings are greased/pre-lubricated.
Oil resistant, ergonomic red handles.
Complete with tempered, galvanized clamping screw and rubber nose.
Also available in stainless steel with MOQ (M60DP).
Similar to 6841, 6841NI, etc.

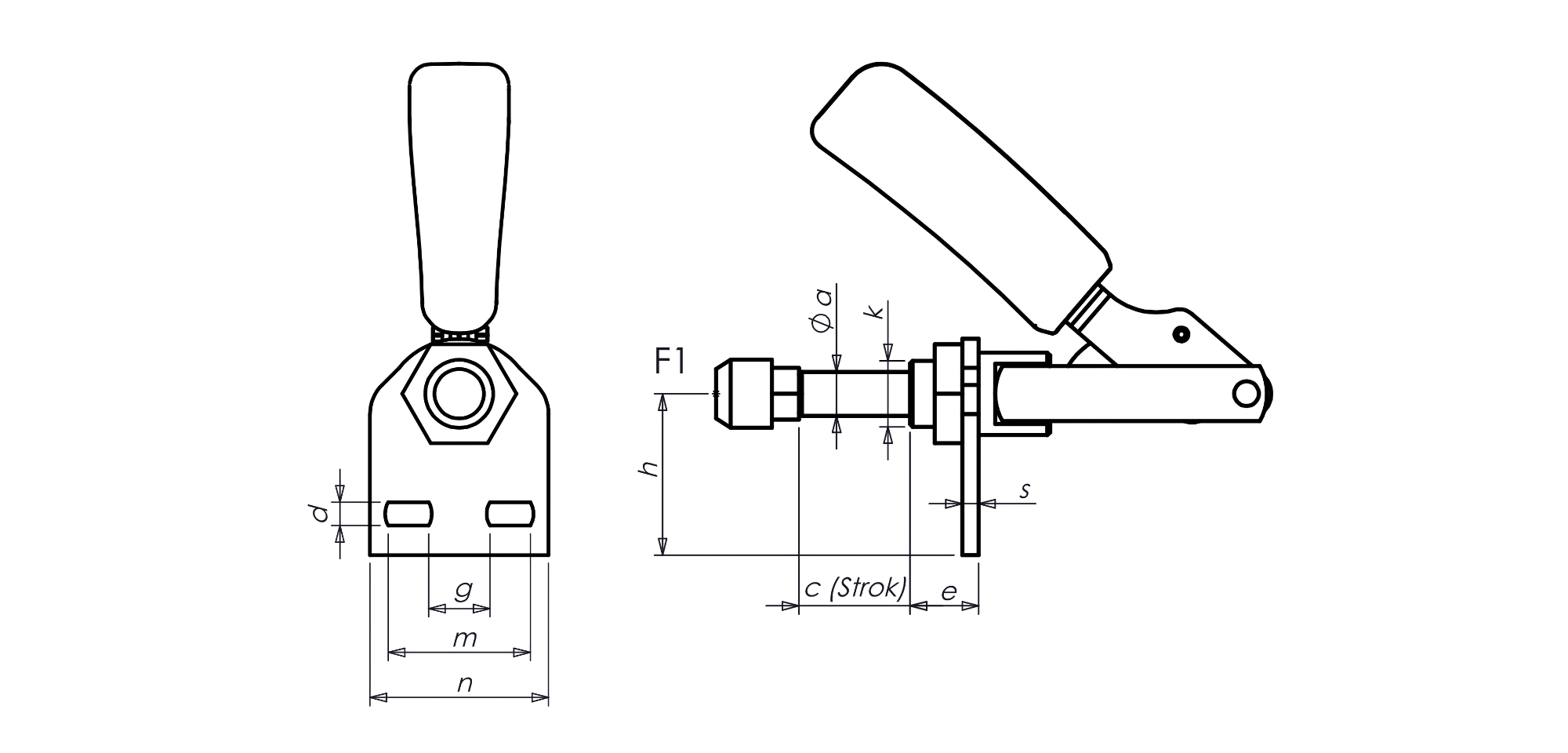

CAD-files easy and quick to download (see dimension table) !
Size F1 F2 Total Total Clamping Weight Price CAD Order-No.
0 0.8
0.8
40
110
M4 x 20
80
15,50
M60D-0
1 1.0
1.0
58
120
M4 x 20
120
17,60
M60D-1
2 2.0
2.0
80
175
M6 x 25
270
19,80
M60D-2
3 2.5
2.5
102
190
M8 x 35
450
23,80
M60D-3
5 4.5
4.5
123
230
M12 x 50
960
32,90
M60D-5
Size a c d e g h k m n s CAD Order-No.
0 6
16
4.5
10
16
24.5
M10 x 1
16
25
2.5
M60D-0
1 8
20
4.5
17
15
31
M12x1.5
20
30
3
M60D-1
2 10
28
5.5
19
28.5
45
M16x1.5
39.5
50
4
M60D-2
3 12
32
6.5
18
30
51
M20x1.5
42
60.5
5
M60D-3
5 16
40
8.5
25
28
59
M24x1.5
46
65
6
M60D-5
