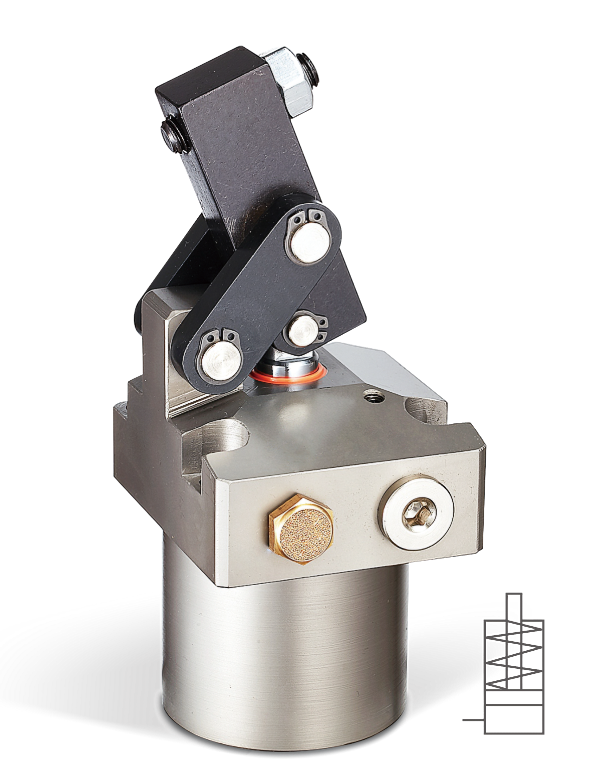

HLCT Hydraulic Link Clamp - single acting
Hdyraulic Link Clamp - Hydraulic Cylinder :
- very compact series with low flange design
- single acting with spring unclamp
- suitable especially for compact and light fixtures with high clamping forces.
- High clamping forces 2,45kN up to 17,45kN
- Clamping force depends on the clamp arm length and hydraulic pressure
- complete with clamping arm and screw
- Use flow control valve for meter-in control.
- Min. operating pressure : 25bar
- Max. operating pressure : 70bar
- Range of Temperature : -10 ~ +70°C
- various sizes and types
➝ CAD-files and prices on Request !
Product Datasheet (Download)
Ordering Indication : HLCT - 02 L
| ① | SERIES | HLKA | |
| ② | Body size | 02 / 04 / 06 / 010 / 016 / 25 | |
| ③ | Lever direction | Blank: Standard front side R: Right side L: Left side |
| Model No. | Clamping force at 70 bar [kN] | Clamping stroke [mm] | Total stroke [mm] | Oil capacity Clamp [cm3] | eff. piston area clamp [cm2] | Return Spring force [kN] |
|---|---|---|---|---|---|---|
| HLCT-02 | 2,45 | 17,5 | 20,5 | 10 | 4,9 | 0,25 |
| HLCT-04 | 3,27 | 20,5 | 23,5 | 16,7 | 7,1 | 0,4 |
| HLCT-06 | 4,08 | 23 | 26 | 25 | 9,6 | 0,63 |
| HLCT-10 | 6,94 | 26,5 | 29,5 | 44,8 | 15,2 | 0,81 |
| HLCT-16 | 11,33 | 33 | 36 | 88,6 | 24,6 | 1,52 |
| HLCT-25 | 17,45 | 42 | 45 | 173,3 | 38,5 | 1,58 |
